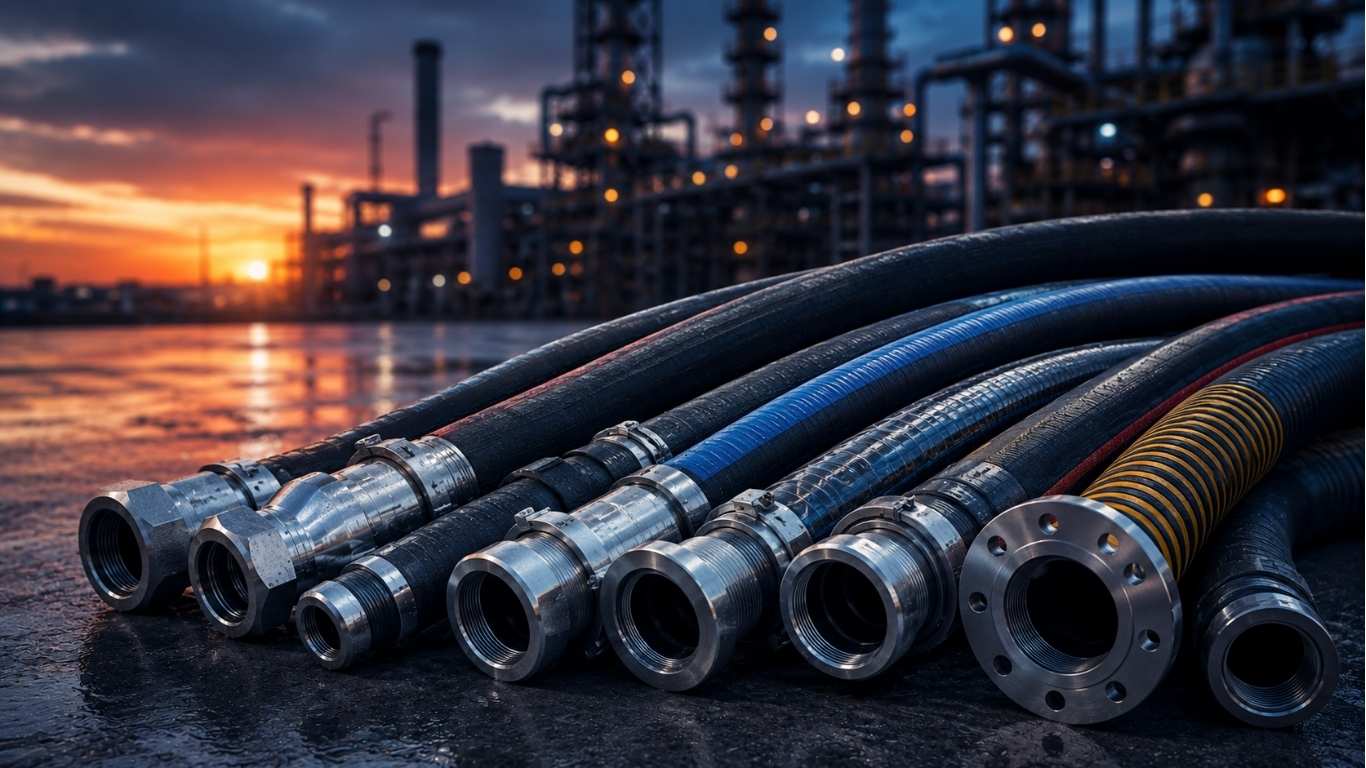

Industrial Hoses
Industrial Hose Solutions

Industrial Hoses Carbon Free Hose

Specially engineered non-conductive industrial hose designed for furnace cooling systems and low current leakage applications requiring maximum safety and reliability.

Home / Industrial Hoses / Carbon Free Hose
Industrial Hose Range

Advanced Carbon Free Technology

Carbon Free Hose is specially developed for non-conductive applications where electrical leakage protection and heat resistance are critical operating requirements.

Featuring a white non-conductive tube and green nitrile rubber cover, this hose delivers superior insulation, durability and operational safety in furnace coolant circulation systems.

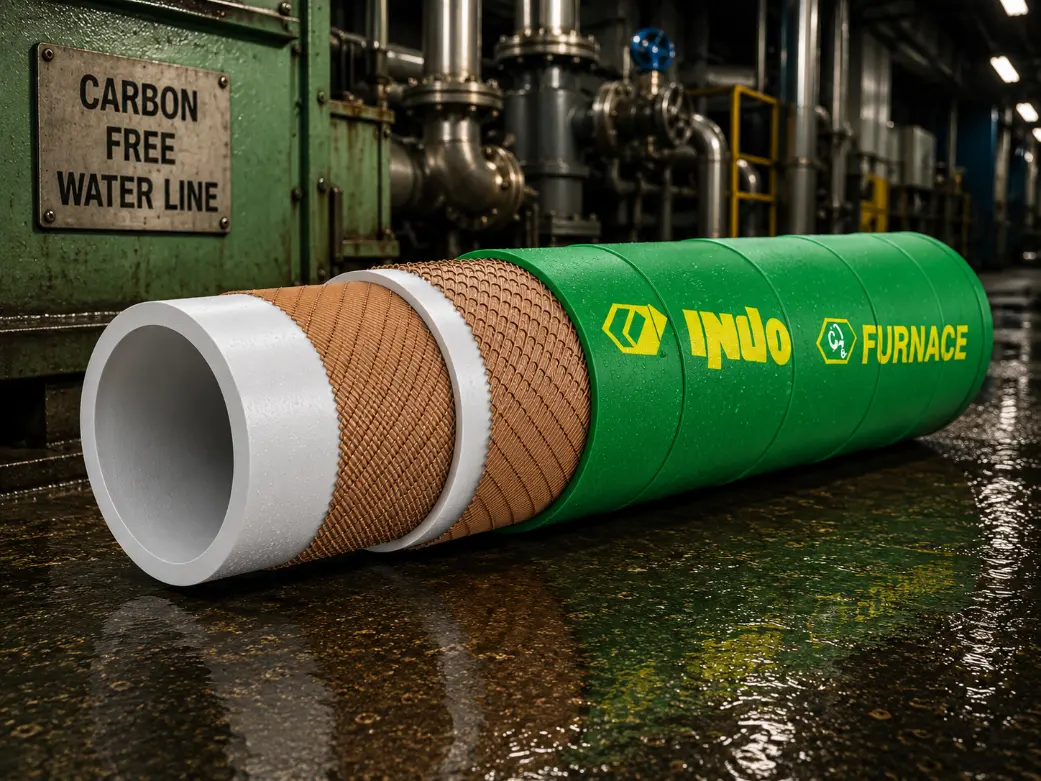

Carbon Free Hose
Industrial Hose

Carbon Free Hose

Carbon Free Hose
Technical Details

Product Specifications

TUBE: Specially engineered non conductive rubber, white
REINFORCEMENT: Subject to ID One or Multiple layers of Textile reinforced subjected to ID
COVER: Specilly engineered Nitrile rubber cover, green
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: Speciality hose for non conductive applications, majorly catering to furnace coolant conveyance & low current leakage.
PROPERTIES: Heat Resistant | Non-Conductive Tube & Cover | Uniform Thickness | Industry Leader
APPLICABLE STANDARDS: Indo-Maksson Proprietory
STANDARD COLOUR: Inner Tube White | Outer Cover Green
MARKING: Indo - Furnace - Carbon Free Hose Heat Resistant I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Weight Max Length
MM INCH MM BAR PSI BAR PSI MM INCH KG/MTR MTR
31.00 1.1/4 44.00 17.2 250 69 1000 152 6.00 1.30 50
38.00 1.1/2 51.50 17.2 250 69 1000 203 8.00 1.65 50
50.00 2 66.00 14 203 56 800 304 12.00 2.15 40
56.00 2.1/4 77.00 14 203 56 800 500 19.70 2.55 40
63.00 2.1/2 83.00 14 203 56 800 600 23.50 3.15 40
70.00 2.3/4 90.00 14 203 56 800 800 31.50 3.50 40
75.00 3 96.00 14 203 56 800 635 25.00 4.10 40
88.00 3.1/2 111.00 14 203 56 800 1000 39.40 5.20 40
100.00 4 124.00 10 145 30 450 1200 47.20 6.50 40
125.00 5 155.00 10 145 30 450 - - 9.02 40
152.00 6 179.00 10 145 40 580 - - 10.80 40
Industrial Hose

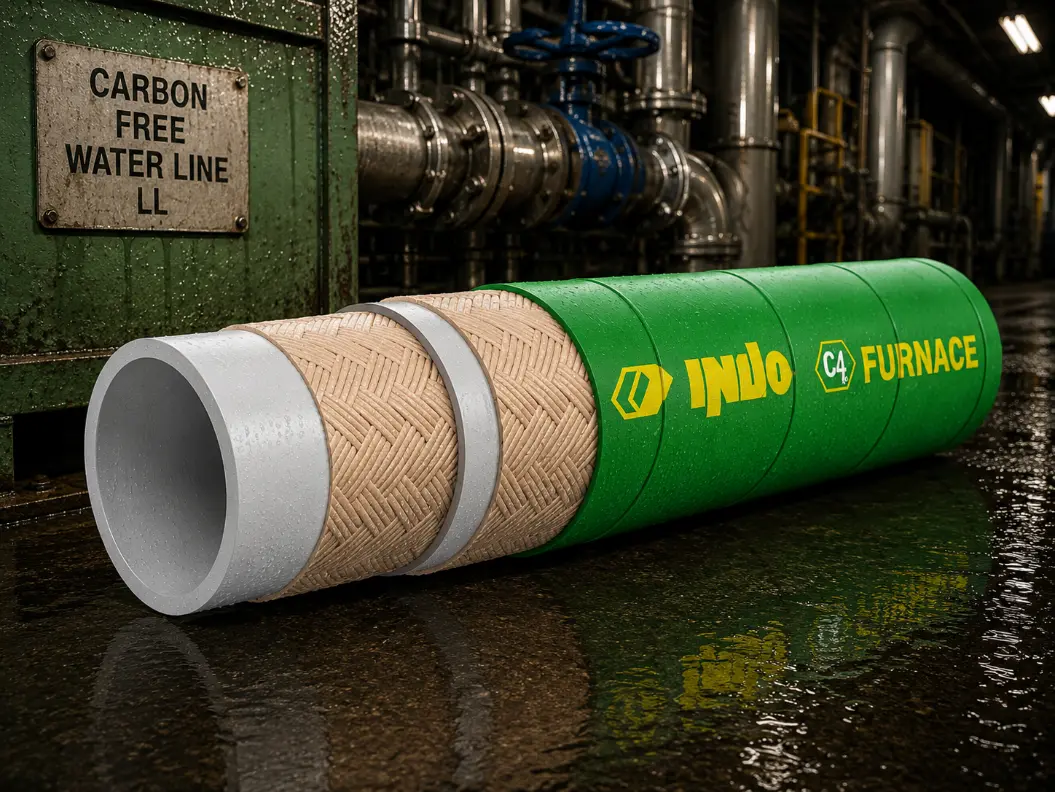

Carbon Free Hose LL

Carbon Free Hose LL
Technical Details

Product Specifications

TUBE: Specially engineered non conductive rubber, white
REINFORCEMENT: One or Multiple layers of Textile reinforced subjected to ID
COVER: Specilly engineered rubber cover, green
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: Speciality hose for non conductive applications, majorly catering to furnace coolant conveyance & low current leakage (less than 20 micro amp at 6 KV DC).
PROPERTIES: Heat Resistant | Non-Conductive Tube & Cover | Uniform Thickness | Industry Leader
APPLICABLE STANDARDS: Indo-Maksson Proprietory
STANDARD COLOUR: Inner Tube - White | Outer Cover - Green
MARKING ON THE HOSE: Indo - Furnace - Carbon Free Hose LL Heat Resistant I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
MM INCH MM BAR PSI BAR PSI MM INCH KG/MTR. MTR.
10.003/818.0017.22506910001505.900.38100+
12.501/222.0017.22506910001024.000.44100+
16.005/826.0017.22506910001154.500.60100+
20.003/429.5017.22506910001275.000.62100+
25.00137.0017.22506910001275.000.91100+
31.001.1/444.0017.22506910001526.001.2050
38.001.1/251.5017.22506910002038.001.3550
Industrial Hose

Chemical Hose LL

Chemical Hose LL
Technical Details

Product Specifications

TUBE: Synthetic rubber tube, EPDM, White & Black
REINFORCEMENT: Braided high tensile yarn
COVER: Perforated synthetic rubber cover, EPDM
TEMP RANGE: -30°C to +100°C
APPLICATIONS: For conveyance of a wide range of chemicals such as acids, alkalies, inorganic salts and alcoholic materials.
PROPERTIES: Chemical Resistant | Uniform Thickness | Flexible
APPLICABLE STANDARDS: Exceeds IS 7654 Type 2
STANDARD COLOUR: Inner Tube - Black, White | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Multi Purpose Chemical Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Max. Coll Length
MM INCH MM BAR PSI BAR PSI MM INCH MTR
19 3/4 31 12 170 48 700 152 6 100+
25 1 38 12 170 48 700 203 8 100+
31 1.1/4 45 12 170 48 700 215 9 50
38 1.1/2 52 12 170 48 700 254 10 50
50 2 66 12 170 48 700 355 14 40
Industrial Hose

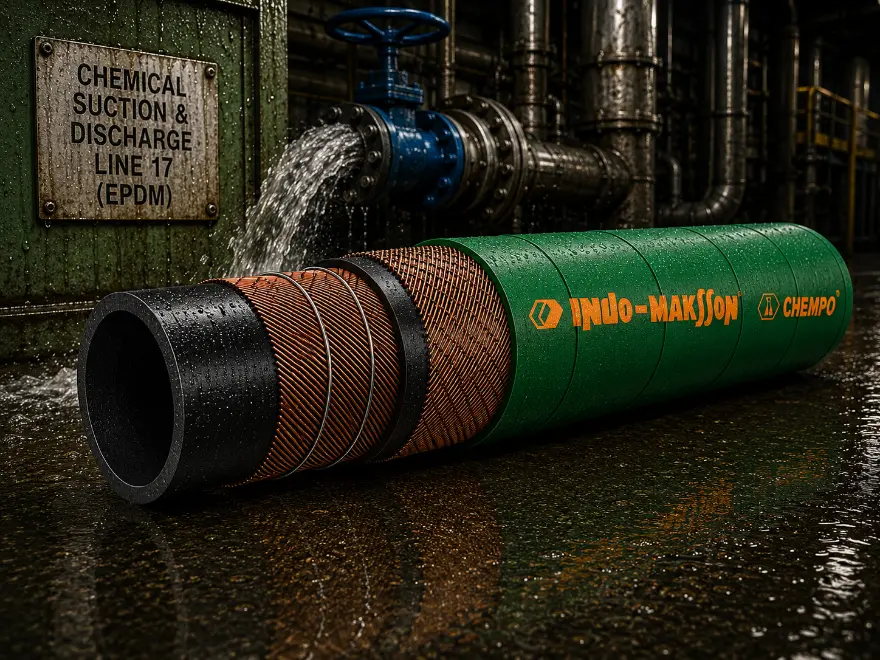

Chemical Suction & Discharge Hose 17 (EPDM)

Chemical Suction & Discharge Hose 17 (EPDM)
Technical Details

Product Specifications

TUBE: Black smooth EPDM rubber compound
REINFORCEMENT: High tensile synthetic plies with helical wire
COVER: Synthetic rubber cover, EPDM
TEMP RANGE: -30°C to +120°C (Intermittent)
APPLICATIONS: Suction & delivery hose for aggressive chemical products and acids at high concentration.
PROPERTIES: Chemical Resistant | Uniform Thickness | Flexible
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Green
MARKING ON THE HOSE: Indo-Maksson - Chemro Chemical Hose S & D-XLPE I.D. W.P. India
ID OD Working Pressure Bursting Pressure Weight
MM INCH MM BAR PSI BAR PSI KG/MTR
25.0 1 37.0 17 250 51 750 0.80
32.0 1.1/4 44.0 17 250 51 750 0.99
38.0 1.1/2 52.0 17 250 51 750 1.50
51.0 2 67.0 17 250 51 750 2.04
64.0 2.1/2 80 17 250 51 750 2.70
76.0 3 92.0 17 250 51 750 3.12
102.0 4 118.0 17 250 51 750 5.10
125.0 5 146.0 17 250 51 750 6.76
150.0 6 172.0 17 250 51 750 8.36
Industrial Hose

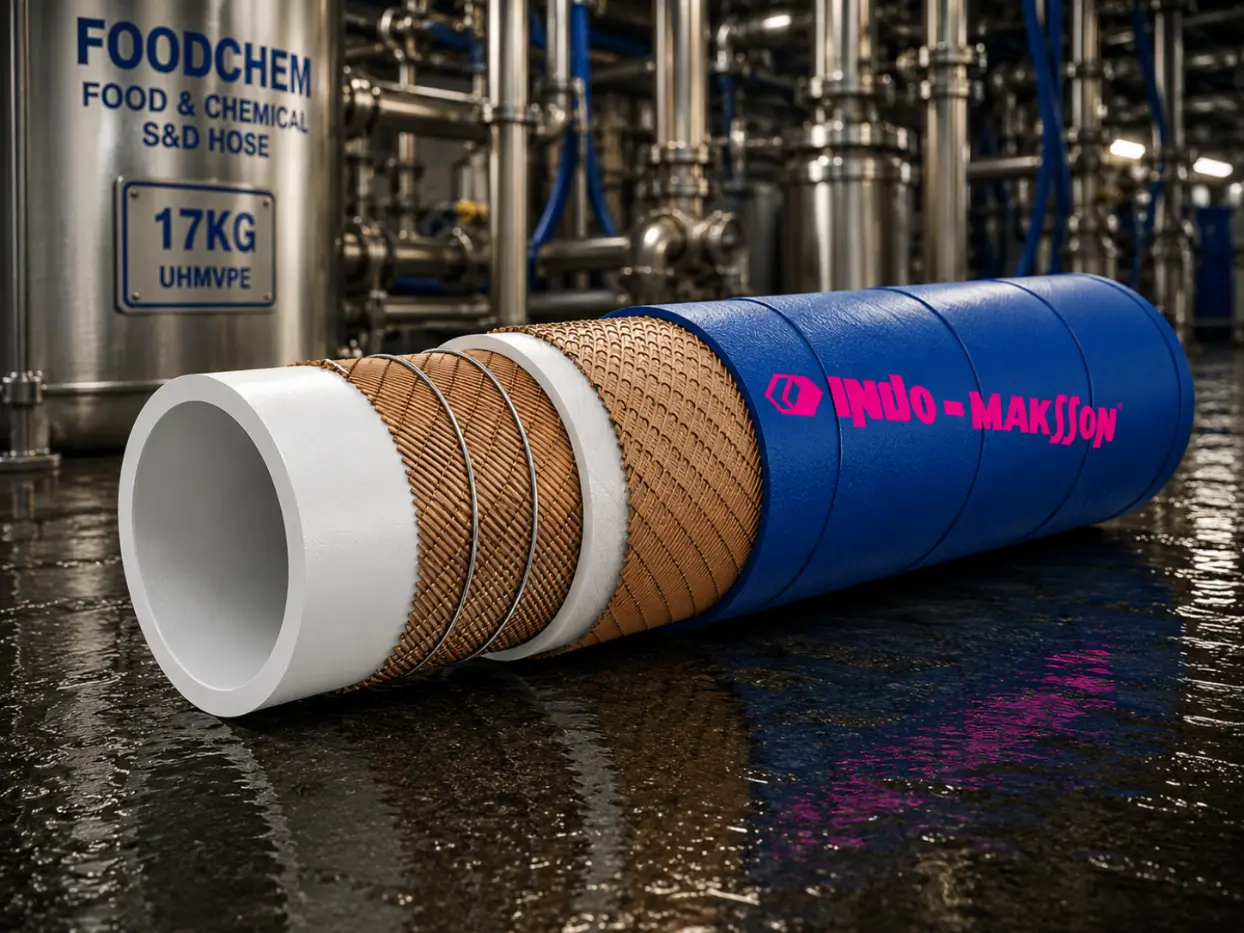

FOODCHEM (Multipurpose Food & Chemical S&D Hose 17KG - UHMWPE)

FOODCHEM Multipurpose Food & Chemical S&D Hose 17KG - UHMWPE
Technical Details

Product Specifications

TUBE: Translucent, Non-Conductive UHMWPE Lining
REINFORCEMENT: High Tensile Synthetic Plies With Helical Wire
COVER: Synthetic Rubber Cover, EPDM
TEMP RANGE: -20°C to +120°C (Intermittent)
APPLICATIONS: Suction & Delivery Hose For Aggressive Chemicals, Petroleum Products & Food Stuffs.
PROPERTIES: 99% Chemical Resistant | Uniform Thickness | Flexible
STANDARD COLOUR: Inner Tube - Translucent UHMWPE Lining White | Outer Cover - Blue
MARKING ON THE HOSE: Indo-Maksson - Foodchem Multipurpose Food & Chemical S&D Hose 17KG - UHMWPE I.D. W.P. India
ID OD Working Pressure Bursting Pressure Max. Coll Length
MM INCH MM BAR PSI BAR PSI MTR
25 1 35 17 240 51 720 40
31 1.1/4 43 17 240 51 720 40
38 1.1/2 50 17 240 51 720 40
50 2 66 17 240 51 720 40
63 2.1/2 79 17 240 51 720 40
75 3 93 17 240 51 720 40
100 4 118 17 240 51 720 40
125 5 146 17 240 51 720 40
150 6 172 17 240 51 720 40
Steam Hose

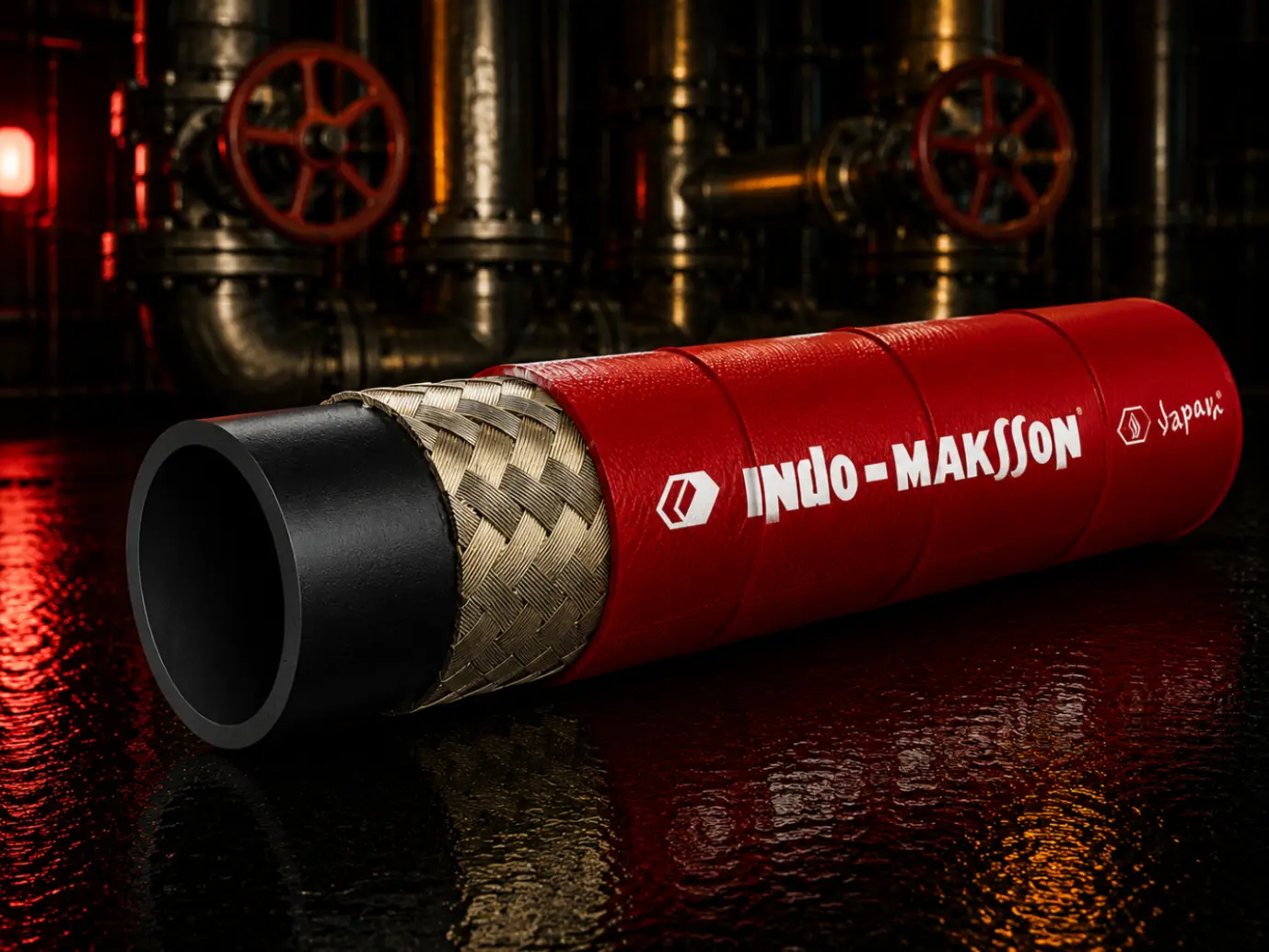

Steam Hose 1W

Steam Hose 1W
Technical Details

Product Specifications

TUBE: Black, EPDM
REINFORCEMENT: Single Braided High Tensile Steel Wire
COVER: Black, EPDM
TEMP RANGE: -40°C to +185°C Approx
APPLICATIONS: For Saturated Steam Applications Which Can Be Resisted Up To 185°C.
PROPERTIES: High Temperature | Flexible | Uniform Thickness
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Steam Hose Type 2 I.D. W.P. Made In India
ID OD Working Pressure Bursting Pressure Bending Radius
MM INCH MM BAR PSI BAR PSI MM INCH
12.00 1/2 23.00 10 150 100 1500 - -
16.00 5/8 26.20 10 150 100 1500 - -
20.00 3/4 30.10 10 150 100 1500 254 10.00
25.00 1 36.00 10 150 100 1500 304 12.00
31.00 1.1/4 43.50 10 150 100 1500 406 16.00
38.00 1.1/2 50.00 10 150 100 1500 508 20.00
50.00 2 63.00 10 150 100 1500 635 25.50
Oil & Fuel Hose

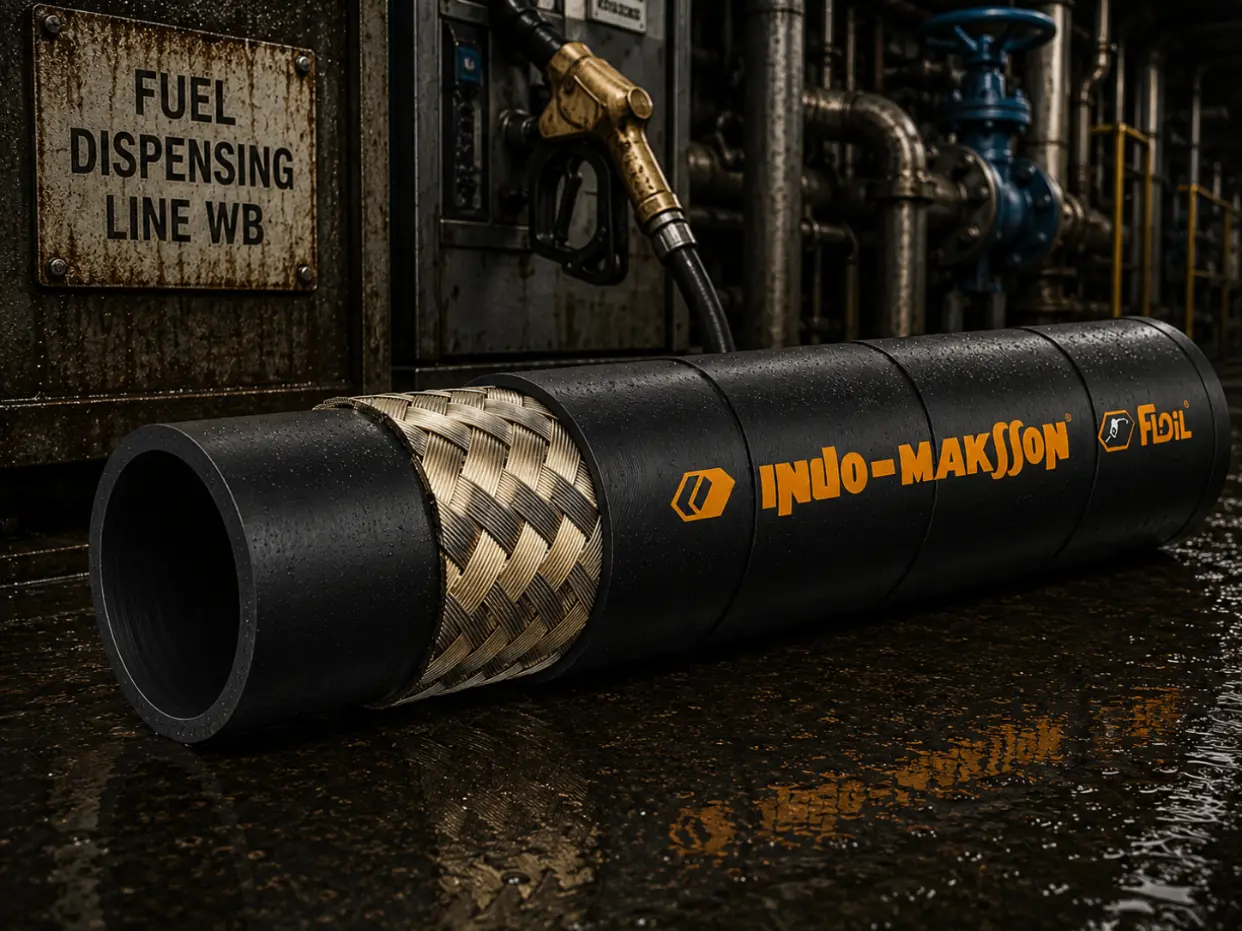

Fuel Dispensing Hose WB

Fuel Dispensing Hose WB
Technical Details

Product Specifications

TUBE: Synthetic Rubber Inner Tube
REINFORCEMENT: High Strength Steel Wire Braid
COVER: Black Synthetic Rubber Cover Resistant To Weather And Petroleum Based Fuel
TEMP RANGE: -40°C to +55°C
APPLICATIONS: For Dispensing Petrol & Diesel Fuels
PROPERTIES: Seamless | Uniform Thickness | Flexible
APPLICABLE STANDARDS: BS EN 1360 TYPE III
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Floil Fuel Dispensing Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Max. Coll Length
MM INCH MM INCH BAR PSI BAR PSI MM MTR.
19.1 ¾ 29.5 1.16 16 232 48 696 152 100
25.4 1 36.0 1.42 16 232 48 696 203 100
Oil & Fuel Hose

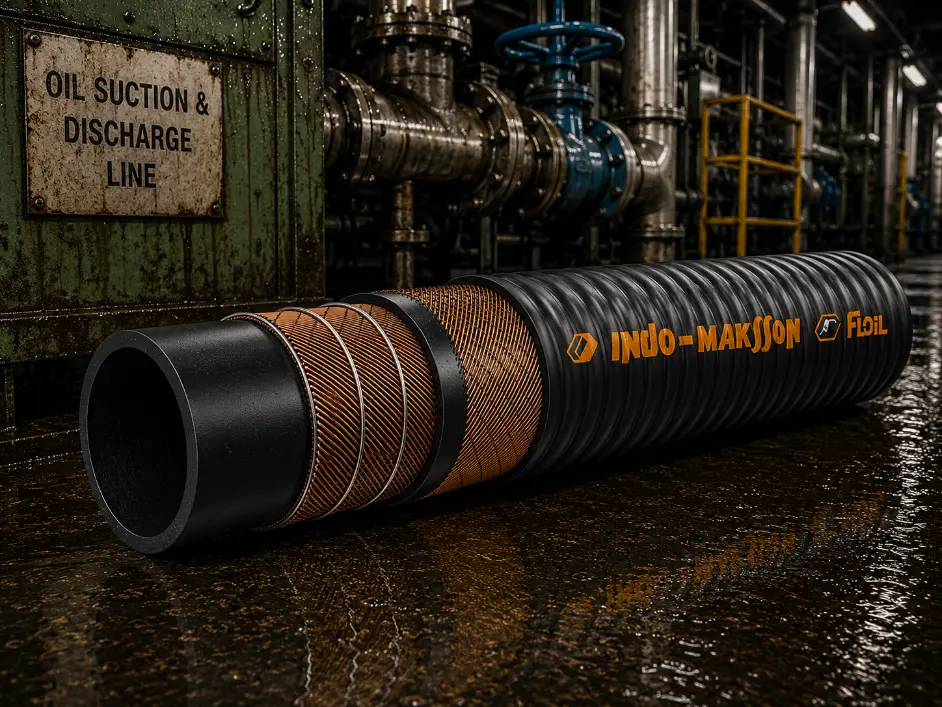

Oil Suction & Discharge Hose

Oil Suction & Discharge Hose
Technical Details

Product Specifications

TUBE: Specially Compounded Oil Resistant Synthetic Rubber, Black
REINFORCEMENT: High Strength Synthetic Plies with Helix Wire
COVER: Black Synthetic Rubber Cover Resistant To Oil
TEMP RANGE: -26°C to +85°C Approx
APPLICATIONS: For Suction And Discharge Of Oil And Petroleum Grades With Aromatic Contents Up To 50% From Tank Trucks And Similar Industrial Applications.
PROPERTIES: Seamless | Uniform Thickness | Flexible | Very Strong
APPLICABLE STANDARDS: Exceeds IS 10733 : Type 1B and 2B
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Floil Suction and Discharge Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Max. Coll Length
MM INCH MM BAR PSI BAR PSI MM MTR.
31 1¼ 44 10 150 30 450 190 40
38 1½ 51 10 150 30 450 230 40
50 2 64 10 150 30 450 310 40
63 2½ 78 10 150 30 450 380 40
75 3 91 10 150 30 450 460 40
100 4 119 10 150 30 450 610 40
125 5 146 10 150 30 450 760 40
150 6 173 10 150 30 450 920 40
Industrial Hose

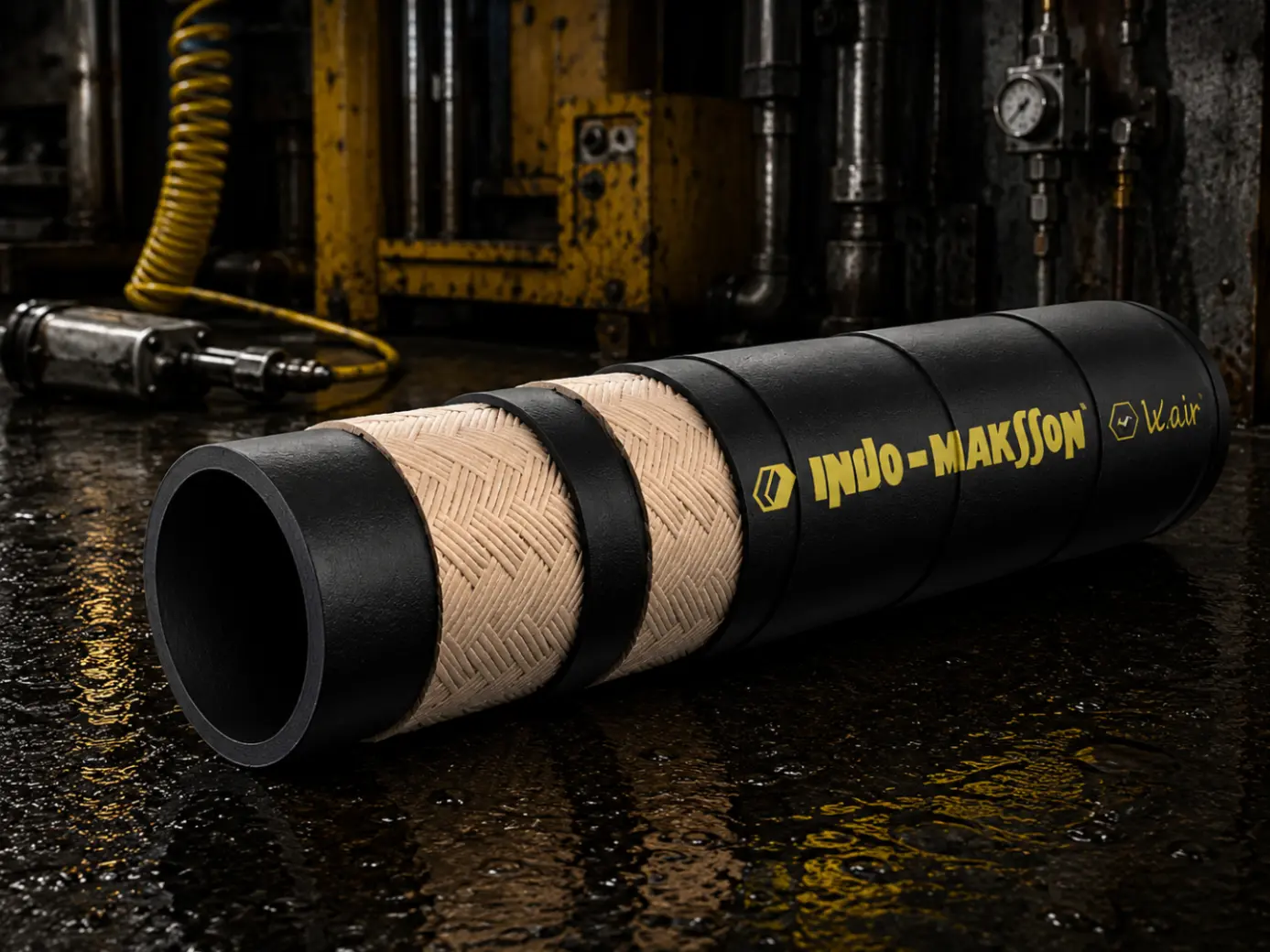

Rock Drill Hose LL

Rock Drill Hose LL
Technical Details

Product Specifications

TUBE: Specially Compounded NBR Rubber, Black
REINFORCEMENT: Single Braided High Tensile Yarn
COVER: Black Abrasion Resistant Nitrile Rubber Cover, Wrap Finish
TEMP RANGE: -30°C to +82°C
APPLICATIONS: For Heavy Duty Industrial Construction, Rock Drilling Mines, Crusher Zones And Other Rugged Conditions.
PROPERTIES: Seamless | Uniform Thickness | Flexible | High Abrasion Resistance
APPLICABLE STANDARDS: IS 446 - Type III
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Super Rock Drill Hose I.D. W.P. Made In India
ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
MM INCH MM BAR PSI BAR PSI MM INCH KG/MTR. MTR.
12.50 1/2 21.00 21 300 84 1200 203 8.00 0.77 100+
20.00 3/4 30.00 21 300 84 1200 152 6.00 0.58 100+
25.00 1 37.50 21 300 84 1200 203 8.00 0.77 100+
31.00 1.1/4 44.00 14 200 56 800 254 10.00 1.15 100+
38.00 1.1/2 52.00 14 200 56 800 300 12.00 1.52 100+
51.00 2 65.50 14 200 56 800 355 14.00 2.05 100+
Industrial Hose

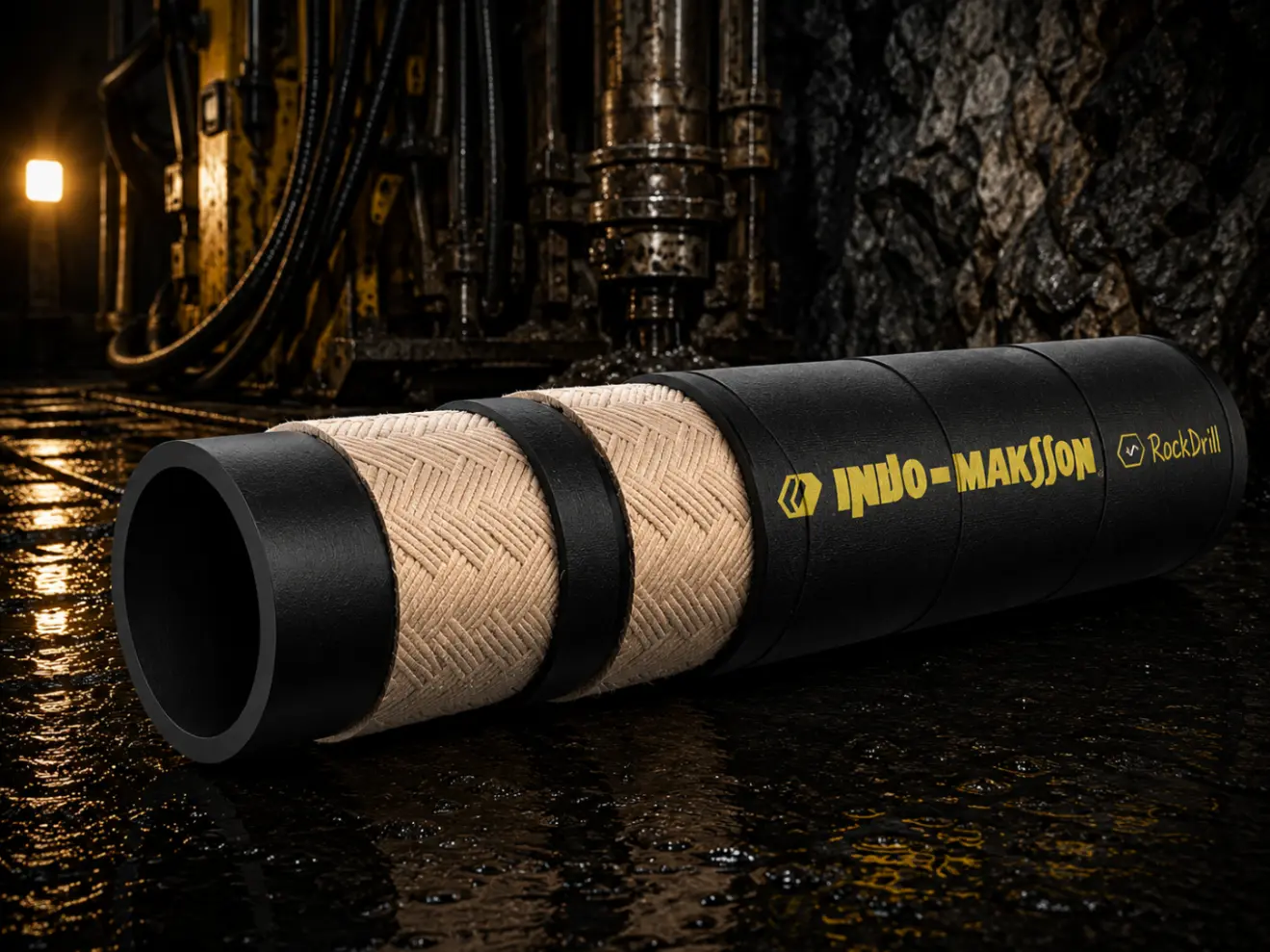

Pneumatic Tool Hose LL

Pneumatic Tool Hose LL
Technical Details

Product Specifications

TUBE: Specially Compounded Synthetic Rubber, Black
REINFORCEMENT: Braiding of High Strength Synthetic Fibre
COVER: Black Rubber Cover, Wrap Finish
TEMP RANGE: -30°C to +82°C
APPLICATIONS: For All Types Of Industries & Pneumatic Tools That Use Compressed Air Applications.
PROPERTIES: Seamless | Uniform Thickness | Flexible
APPLICABLE STANDARDS: IS 446 - Type II
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Pneumatic Tool Hose I.D. W.P. Made In India
ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
MM INCH MM BAR PSI BAR PSI MM INCH KG/MTR. MTR.
6.00 1/4 15.00 14 200 56 800 76 3.00 0.19 100+
8.00 5/16 16.00 14 200 56 800 102 4.00 0.25 100+
10.00 3/8 18.00 14 200 56 800 102 4.00 0.28 100+
12.50 1/2 22.00 14 200 56 800 127 5.00 0.36 100+
19.00 3/4 29.50 14 200 56 800 152 6.00 0.58 100+
25.40 1 37.00 14 200 56 800 203 8.00 0.77 100
31.00 1.1/4 44.00 14 200 56 800 254 10.00 1.00 50
38.00 1.1/2 52.00 14 200 56 800 305 12.00 1.20 50
50.00 2 65.50 14 200 56 800 305 12.00 1.80 40
Industrial Hose

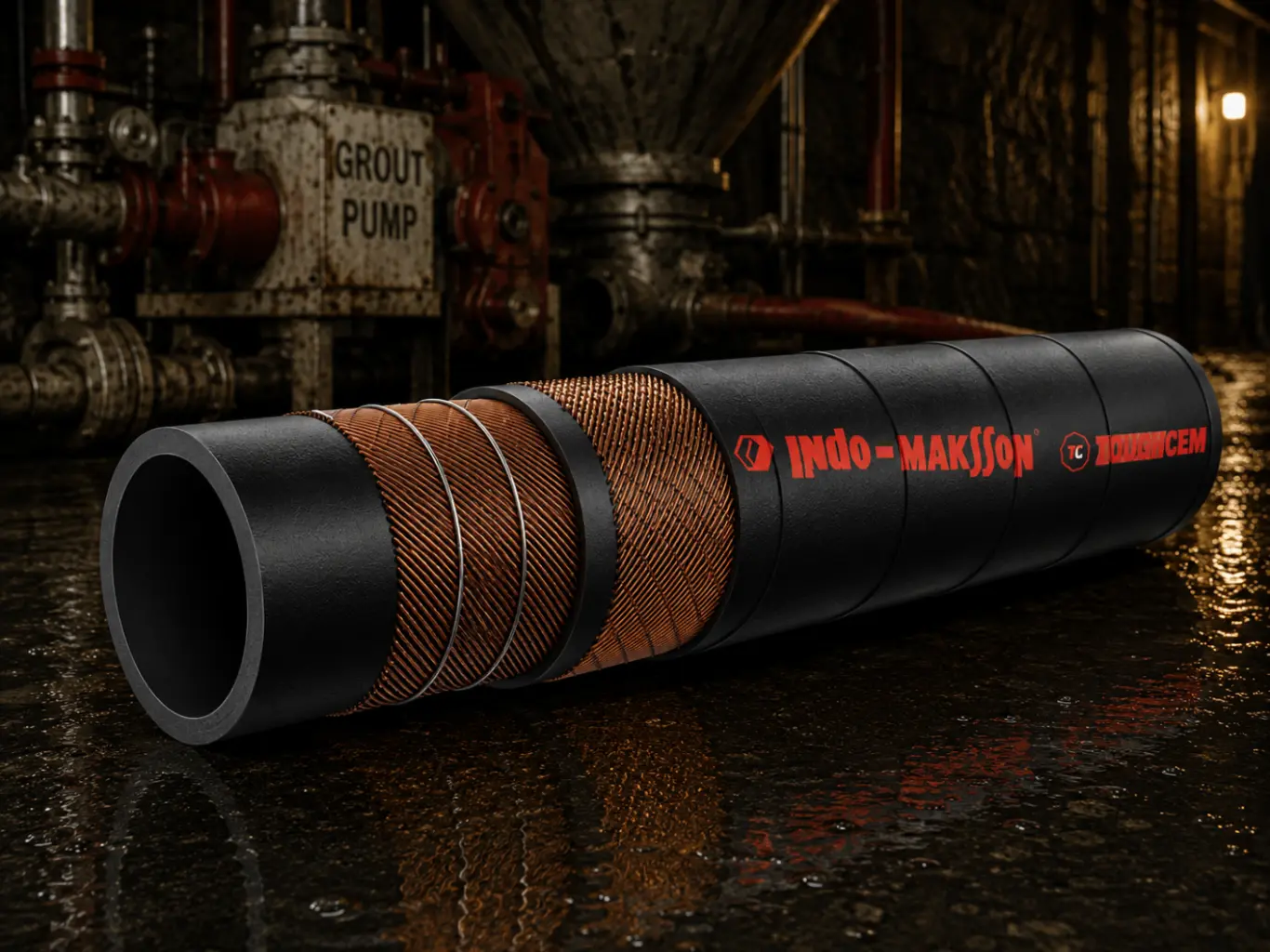

Cement Grouting Hose

Cement Grouting Hose
Technical Details

Product Specifications

TUBE: Specially Compounded Abrasion Resistant Natural Rubber, High Resilience
REINFORCEMENT: High Tensile Synthetic Plies With Helix Wire And Copper Wire
COVER: Black Abrasion Resistant Natural Rubber Cover, Wrap Finish
TEMP RANGE: -40°C to +70°C
APPLICATIONS: For Cement Grouting Applications At Building Sites, Irrigation Projects & Road Construction. Also Used For Conveying Dry And Wet Concrete Mixtures And Cement.
PROPERTIES: High Abrasion Resistance | Seamless | Uniform Thickness
APPLICABLE STANDARDS: Exceeds IS 5137 : 1990
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Tough Line - Slurry Suction Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Max. Coll Length
MM INCH MM BAR PSI BAR PSI MTR.
25 1 31 10 150 30 450 40
31 1¼ 38 10 150 30 450 40
38 1½ 48 10 150 30 450 40
50 2 62 10 150 30 450 40
63 2½ 75 10 150 30 450 40
75 3 89 10 150 30 450 40
100 4 116 10 150 30 450 40
Industrial Hose

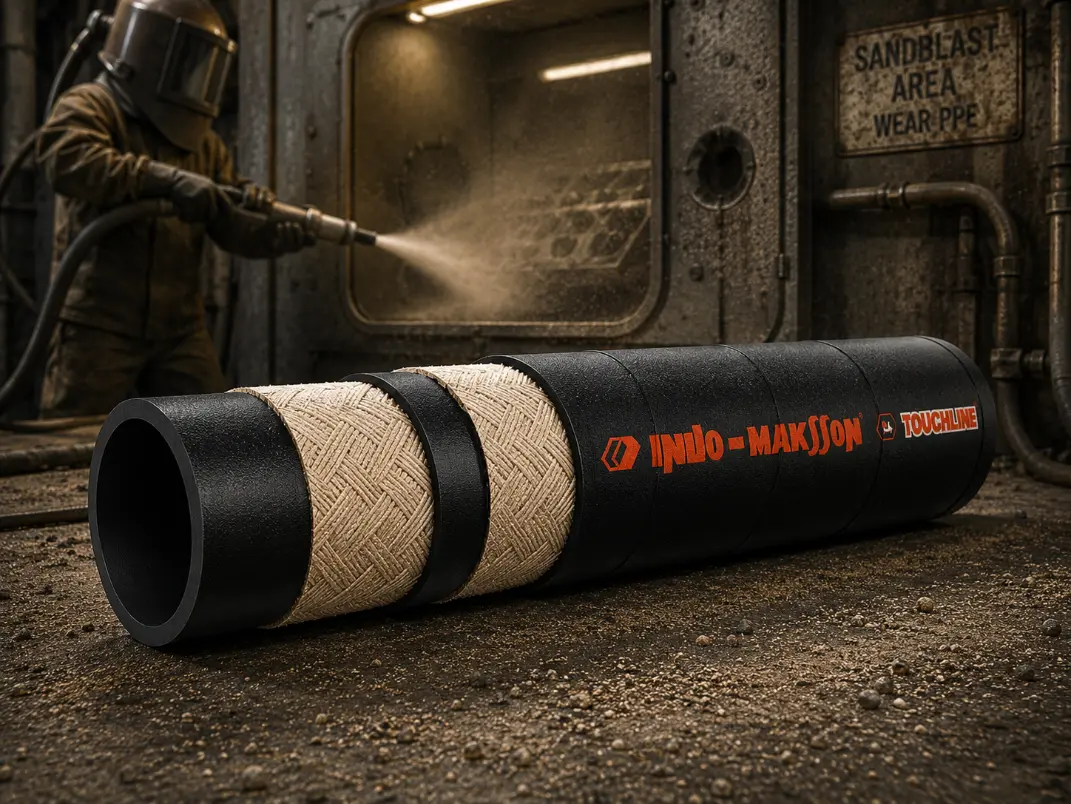

Sand Blast Hose 10/LL

Sand Blast Hose 10/LL
Technical Details

Product Specifications

TUBE: Specially Compounded Abrasion Resistant Natural Rubber, High Resilient
REINFORCEMENT: Single Braided High Tensile Yarn With Copper Wire
COVER: Black Abrasion Resistant Natural Rubber Cover, Wrap Finish
TEMP RANGE: -40°C to +70°C Approx
APPLICATIONS: For Shot And Sand Blasting Applications Used For Cleaning Metal Surfaces, Glass Etching And Smoothing Castings.
PROPERTIES: High Abrasion Resistance | Uniform Thickness | Flexible
APPLICABLE STANDARDS: IS 5894 - Type I & Type II
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson - Sandblast Hose I.D. W.P. Made In India
ID OD Working Pressure Bursting Pressure Bending Radius Weight Max. Length
MM INCH MM BAR PSI BAR PSI MM INCH KG/MTR MTR.
20.00 3/4 35.00 10 145 40 600 203 8.00 0.90 100+
25.00 1 41.00 10 145 40 600 304 12.00 1.00 100
31.00 1.1/4 47.00 10 145 40 600 406 16.00 1.35 50
38.00 1.1/2 58.00 10 145 40 600 457 18.00 1.47 50
Industrial Hose

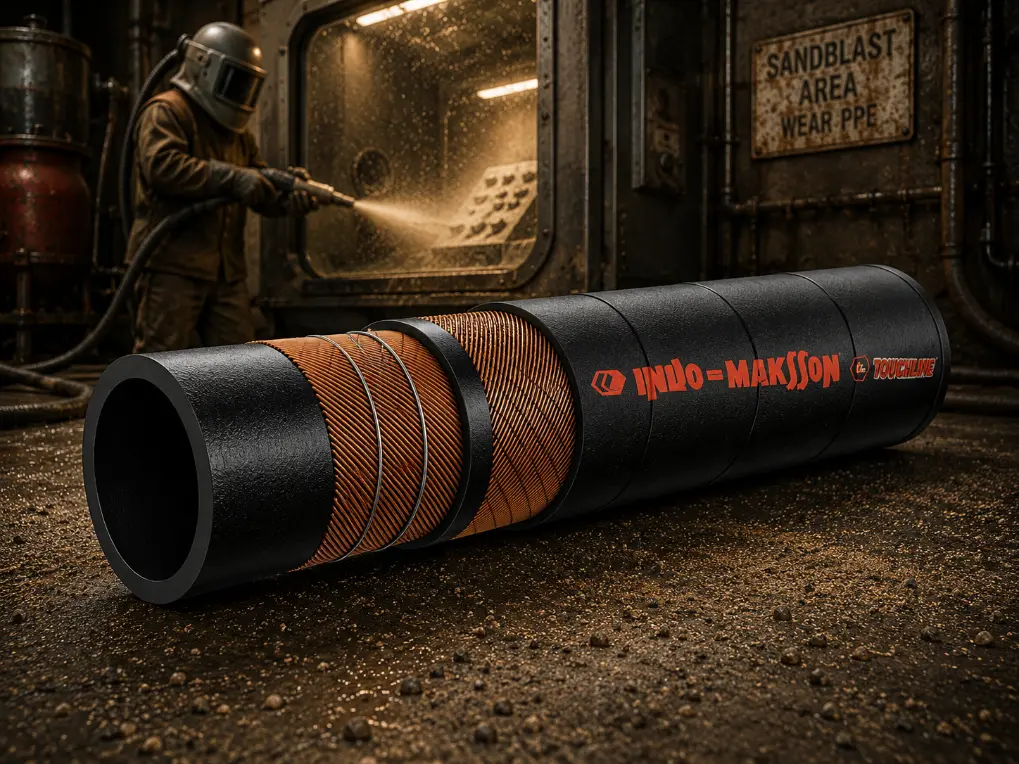

Sand Blast Hose 12

Sand Blast Hose 12
Technical Details

Product Specifications

TUBE: Specially Compounded Abrasion Resistant Natural Rubber, High Resilience
REINFORCEMENT: High Tensile Synthetic Plies With Copper Wire
COVER: Black Abrasion Resistant Natural Rubber Cover, Wrap Finish
TEMP RANGE: -40°C to +70°C Approx
APPLICATIONS: For Shot And Sand Blasting Applications That Help In Clearing Metal Surfaces, Etching Glass Or Smoothing Castings.
PROPERTIES: High Abrasion Resistance | Seamless | Uniform Thickness | Flexible | Also Available In 20 Bar WP
APPLICABLE STANDARDS: IS 5894
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Tough Line Sandblast Hose 12 I.D. W.P. India
ID OD Working Pressure Bursting Pressure Max. Coll Length
MM INCH MM BAR PSI BAR PSI MTR.
20 ¾ 34 12 175 36 525 LL
25 1 40 12 175 36 525 40
31 1¼ 48 12 175 36 525 40
38 1½ 54 12 175 36 525 40
50 2 72 12 175 36 525 40
63 2½ 82 12 175 36 525 40
75 3 96 12 175 36 525 40
Water Hose

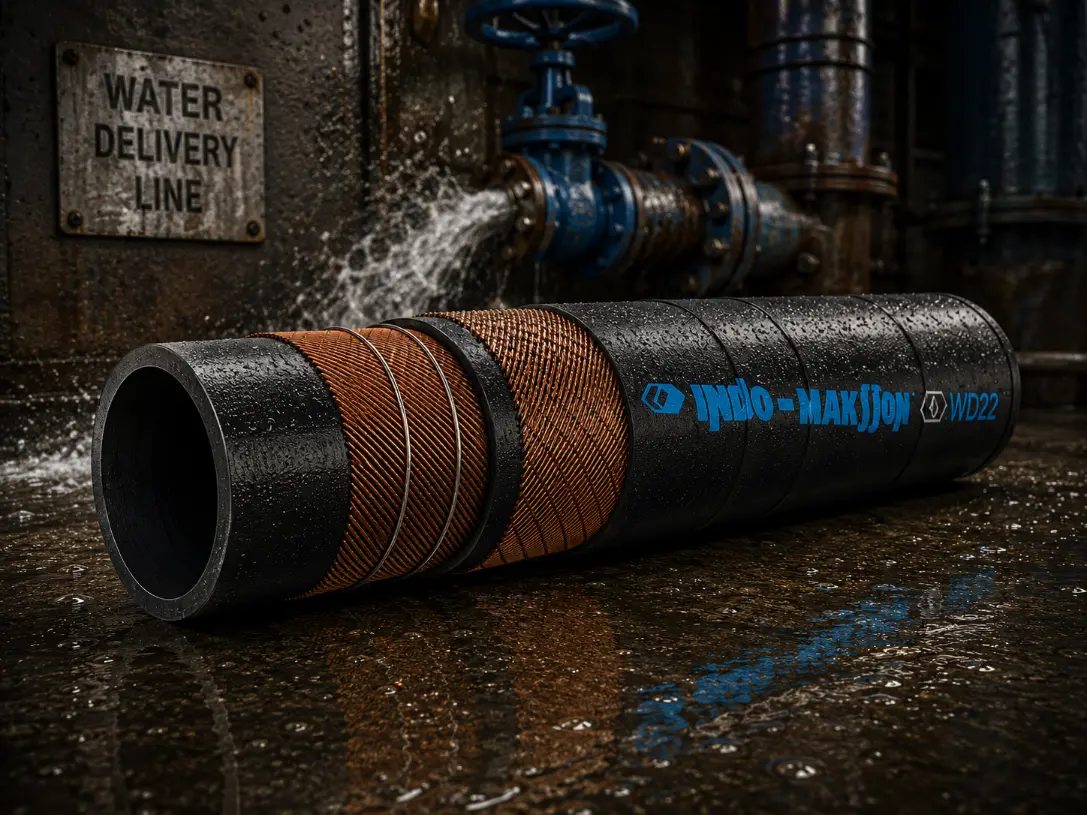

Water Delivery Hose

Water Delivery Hose
Technical Details

Product Specifications

TUBE: Specially Compounded Synthetic Rubber, Black
REINFORCEMENT: High Strength Synthetic Plies
COVER: Black Synthetic Rubber Cover
TEMP RANGE: -40°C to +70°C
APPLICATIONS: For Heavy Duty Air And Water Applications Requiring Seamless Conveyance Across Various Industries.
PROPERTIES: Seamless | Uniform Thickness | Very Strong
APPLICABLE STANDARDS: Indo-Maksson Proprietary
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Hydro Water Delivery Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Max. Length
INCH MM MM BAR PSI BAR PSI MM MTR
1¼ 41 10 150 30 450 190 40 38
1½ 48 10 150 30 450 230 40 50
2 62 10 150 30 450 310 40 63
2½ 76 10 150 30 450 380 40 75
3 87 10 150 30 450 460 40 75
4 115 10 150 30 450 610 40 100
5 142 10 150 30 450 760 40 125
6 168 10 150 30 450 920 40 150
8 225 10 150 30 450 1220 40 200
Water Hose

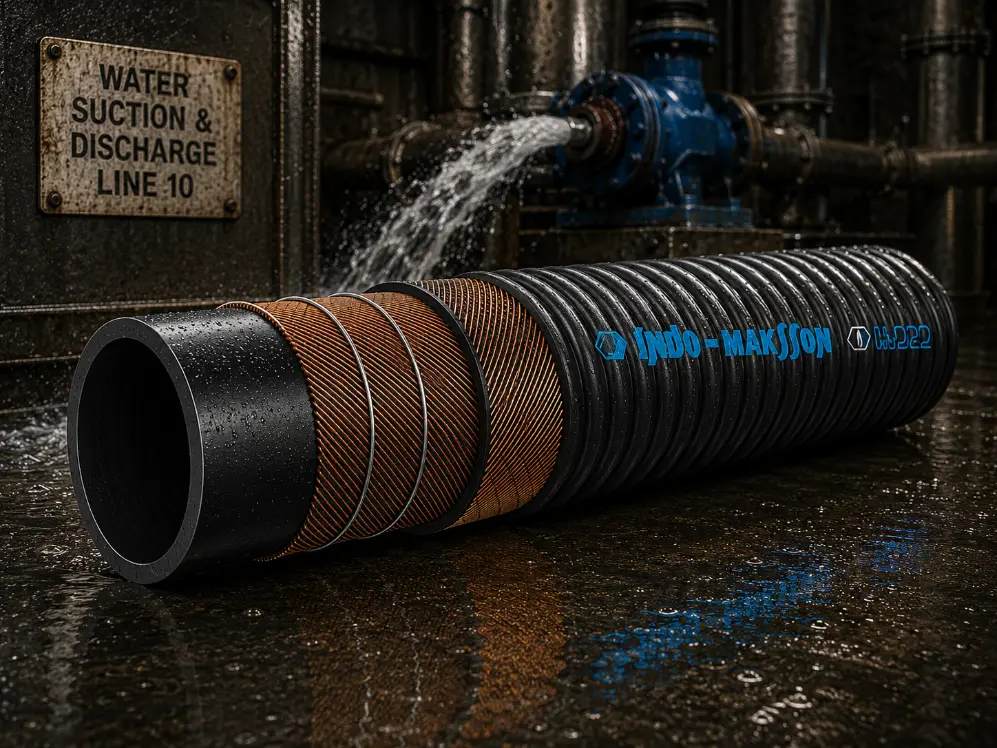

Water Suction & Discharge Hose 10

Water Suction & Discharge Hose 10
Technical Details

Product Specifications

TUBE: Specially Compounded Synthetic Rubber, Black
REINFORCEMENT: High Strength Synthetic Plies with Helix Wire
COVER: Black Synthetic Rubber Cover
TEMP RANGE: -40°C to +70°C Approx
APPLICATIONS: For Suction And Discharge Of Water, Non-Corrosive Inert Fluids, Waste Water And Sewerage Applications.
PROPERTIES: Seamless | Uniform Thickness | Very Strong
APPLICABLE STANDARDS: IS : 3549
STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black
MARKING ON THE HOSE: Indo-Maksson Hydro Water S&D Hose I.D. W.P. India
ID OD Working Pressure Bursting Pressure Bending Radius Max. Length
MM INCH MM BAR PSI BAR PSI MM MTR
31 1¼ 44 10 150 30 450 190 40
38 1½ 51 10 150 30 450 230 40
50 2 64 10 150 30 450 310 40
63 2½ 78 10 150 30 450 380 40
75 3 91 10 150 30 450 460 40
100 4 119 10 150 30 450 610 40
125 5 146 10 150 30 450 760 40
150 6 173 10 150 30 450 920 40
